Deep edge beams on sloping Rouse Hill lots, and the Z bars that hold them in
Why a stepped slab carries extra steel, and what a pre-pour inspection looks for in it.
In short: On a sloping lot the slab edge gets deeper and the engineering adds bent bars to tie the beam into the slab. When those bars are missing, the two parts are not working together as designed.
Why the beams get deeper
Rouse Hill falls towards its creek lines, so plenty of lots are cut, filled or stepped. The slab follows the ground with deeper edge beams and step beams, and those carry more load and more steel than a flat slab edge.
What a Z bar does
A Z bar is bent so one leg sits in the deep beam and the other in the slab above, tying them together. Where the engineer specifies them, they are part of how the slab resists movement in reactive clay.
What we recorded

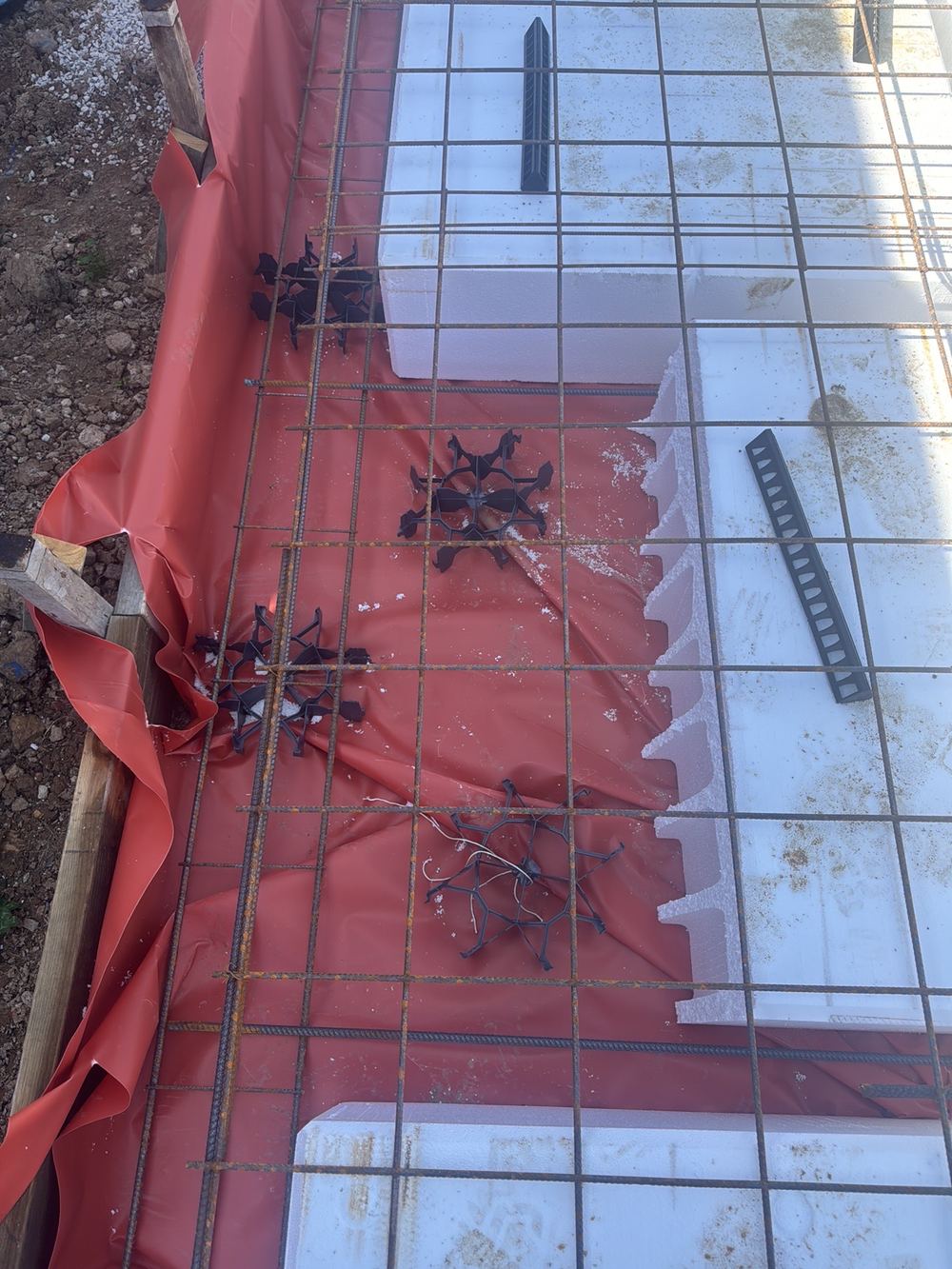

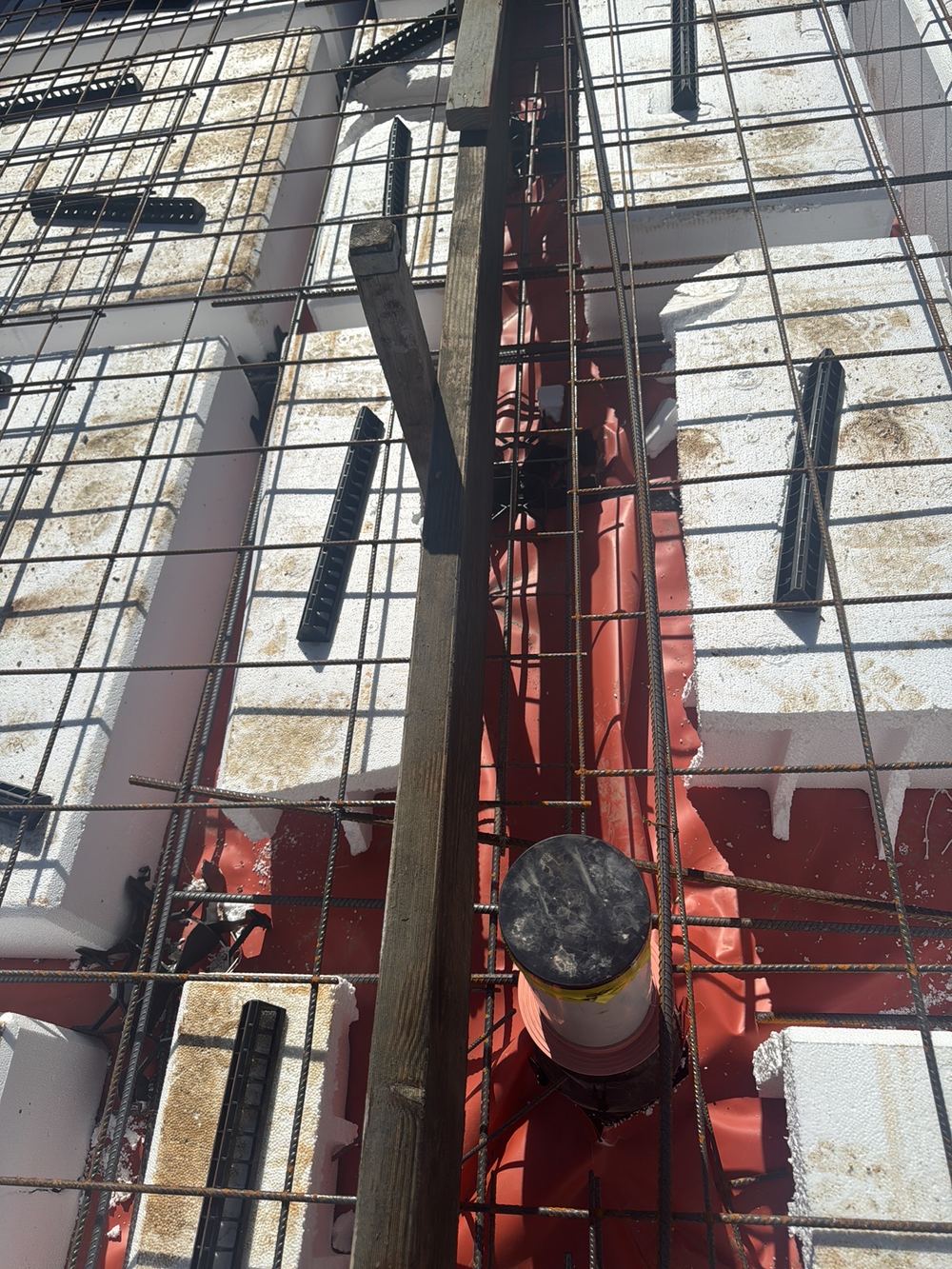

On a September 2026 pre-pour visit in Rouse Hill, no Z bars were seen in a deep edge beam, the lap at a step beam appeared under 150mm, a slab thickening lacked its top and bottom mesh, and a pipe passed through a beam with no added steel either side. Each was referred back to the engineer to confirm.
Why the engineer is involved
Some details need an engineer's call rather than an inspector's. The report says what was seen against the drawings and recommends the engineer confirm before concrete. That is a day's delay at worst.
After the pour
Once concrete is placed none of this can be seen. A dated pre-pour report with photographs is the only record of what went into the beam.
Written by our local inspection team from work carried out in Rouse Hill. Licensed building practitioners, NSW Fair Trading licence 366177C.
